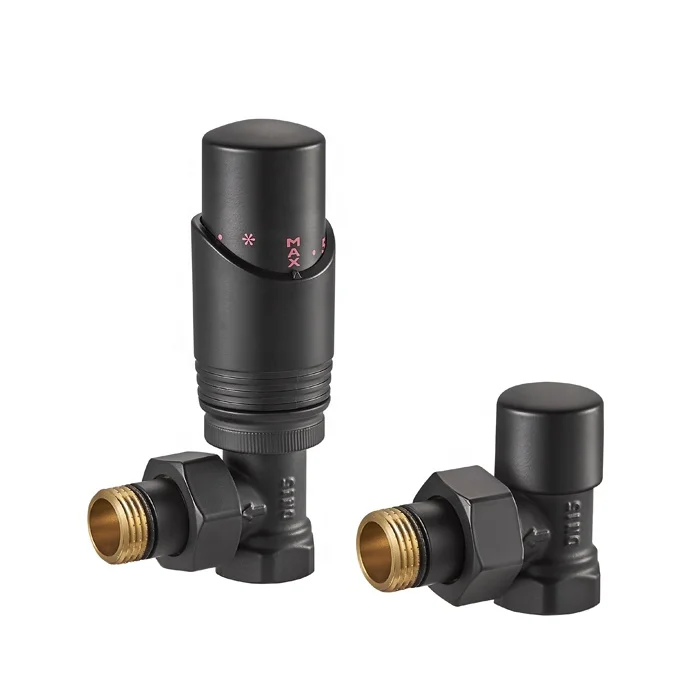

TRV Angled Thermostatic Radiator Valve for Towel Radiators BJ12001-J

Model: BJ12001-J

Size : 1/2''

Material : Brass

Color : Chrome/White/Black/Anthracite

Working Medium : Hot / Cold Water

Max Working Pressure : 10 bar

Max Medium Temperature : 100℃

Test Standards : EN215

Basic Information
Descriptions TRV Angled Thermostatic Radiator Valve
Model No BJ12001-J
Material Brass
Processing Forging, CNC Machining
Size  1/2''
Color Chrome/White/Black/Anthracite
Working Medium Hot/Cold Water
Range of Temperature Adjustment 0 ~ 28℃
Range of Scale 0 ~ 5
Max Working Pressure 10 bar
Max Pressure Difference 0.6bar
Max Medium Temperature ≤ 100℃
Influence of Pressure Difference 0.4K
Influence of Temperature Difference 0.5K
Test Standard EN215
Material Details for Each Part Brass Body, Brass Insert, Copper Sensor Element, Brass Nut, SUS631-17-7H Spring, ABS Cover

Description

The BESTJADES TRV Angled Thermostatic Radiator Valve for Towel Radiator BJ1200-J is a high-quality and reliable valve designed to help you control the temperature of your towel radiator easily and efficiently. This valve is an excellent choice for anyone looking to add comfort and convenience to their bathroom or any other room with a towel radiator.

It is angled in shape, making it easy to fit in tight spaces and connect smoothly to your radiator and the heating pipes.

One of the main features of this valve is its thermostatic function. This means it can automatically adjust the flow of hot water going into the radiator, keeping your towel radiator at the perfect temperature. You can set the valve to your desired warmth level, and it will maintain that temperature without needing constant manual adjustment. This helps save energy and keeps your room comfortable all the time.

Installing the BESTJADES TRV Angled Thermostatic Radiator Valve is straightforward. It is designed to fit most standard towel radiators or towel rails, making it a versatile choice whether you are upgrading an existing radiator or installing a new one. The angled design also makes it easier to connect the valve where straight valves may not fit as well.

This valve is also very easy to use. The thermostatic head comes with a clear numbered dial that lets you pick the heat setting that suits you best. Whether you want your towel warmer to be gently heated or nice and hot, this valve gives you full control. It also helps prevent overheating, so your towels stay warm but not too hot.

The Advantages of BESTJADES Thermostatic Head :

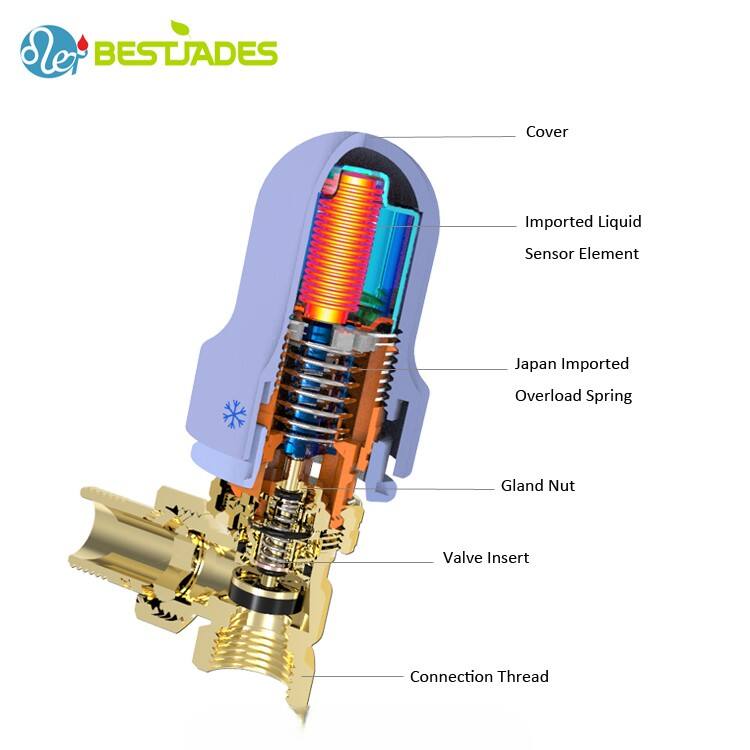

The sensor element of BESTJADES thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.

1. Adopts Germany imported sensor element, which can detect the temperature change sensitive, lifetime is longer

2. The Japan imported stainless steel spring SUS631-17-7H makes the resilience better, and lifetime can reach to 100000 times

3. Professional engineered designed and produced, to give out excellent and reliable performance

4. Test according to EN215 standard

Features

3 colors for more match options-Chrome/White/Anthracite

Forging process, 100% leakage test to eliminate the possibility of leakage

High precision machining, top quality polish and chrome/paint finish

Luxury model with durable quality can offer 5 years warranty

Sensitive thermostat head according to EN215 make the temperature change simple, easy & reliable

Detail Images
  • 443c4416fc312968b63bd343ca20e0492371a9f79eec9f75b67019570b75216c(0897ecf0e1).jpg

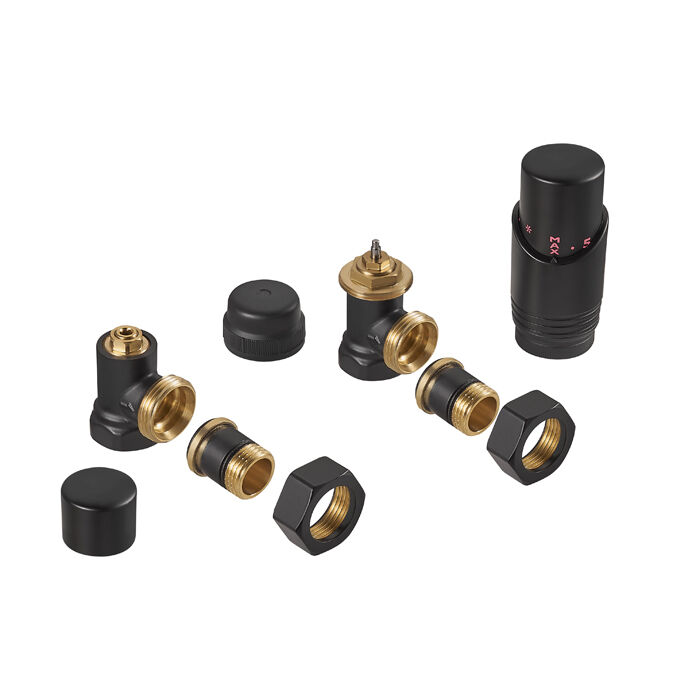

  • BJ12001-J-5.jpg
FAQ

Q1. Can I have a sample order?

A: Yes, sample order can be offered to test and check quality.

Q2. Do you have any MOQ limit for one order?

A: For promotion items: No MOQ, 1pc available.

For non-promotion items: 1000~3000pcs MOQ according to different models.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It takes approx 30 days to

arrive. Airline shipping can be also optional.

Q4. What's your production lead time?

A: Sample order: 7~10 days

Bulk order: 30~45 days

Q5. Can you do OEM?

A: Yes, welcome to provide drawings or samples for customization.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
