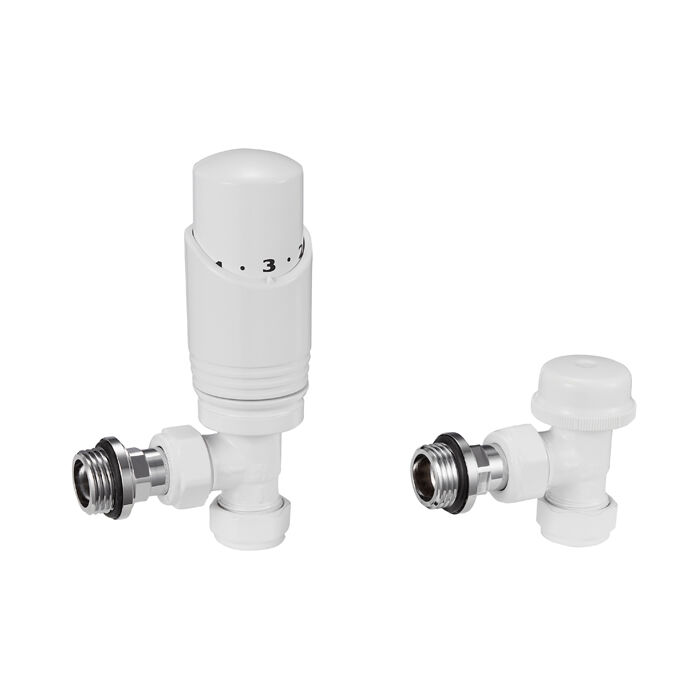

TRV White/Chrome/Anthracite Angled Thermostatic Radiator Valve Lockshield BJ12002-J

Introducing the innovation in heating technology - the TRV White/Chrome/Anthracite Angled Thermostatic Radiator Valve Lockshield BJ12002-J from BESTJADES. This sleek and stylish radiator valve is designed to provide maximum efficiency and control over the temperature in your home.

Constructed with high-quality materials, this valve is built to last and withstand the rigors of everyday use. The white, chrome, and anthracite finish adds a touch of elegance to any room, while the angled design makes it easy to access and adjust the settings as needed.

With its thermostatic feature, this valve allows you to set the desired temperature in each room, ensuring optimal comfort and energy savings. The lock shield function also allows you to control the water flow to the radiator, giving you complete control over the heating system.

Whether you're looking to upgrade your existing heating system or are in the process of building a new home, the TRV White/Chrome/Anthracite Angled Thermostatic Radiator Valve Lock shield BJ12002-J from BESTJADES is the perfect solution. Say goodbye to uneven heating and skyrocketing energy bills - with this valve, you can enjoy a cozy and warm environment while saving money on your heating costs.

What Is A TRV Angled Thermostatic Radiator Valve Lock shield?

Thermostatic radiator valves lock shield (they are also called TRV in short) are self-regulating valves set, fitted to hot water heating system radiator, to control the temperature of a room by changing the flow of hot water to the radiator.

It includes a thermostatic head and 2 valves. The user turns the thermostatic head to the required temperature value. The inside sensor element of thermostatic head sense the room's temperature and adjust the flow of hot water to the desired ambient temperature.

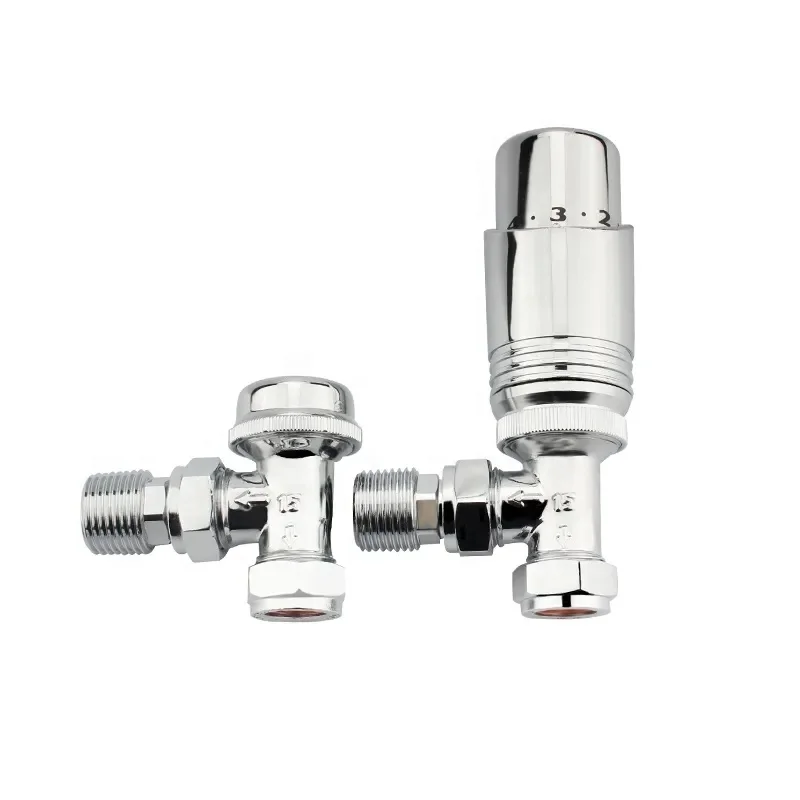

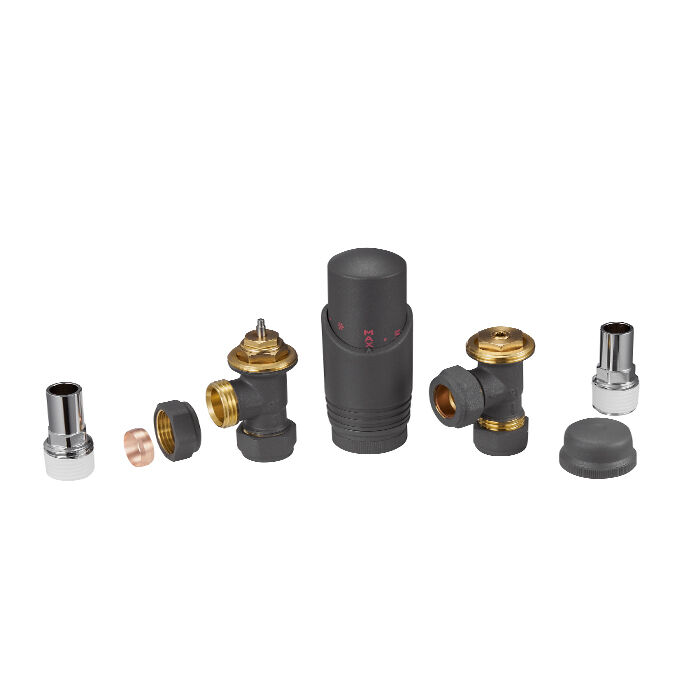

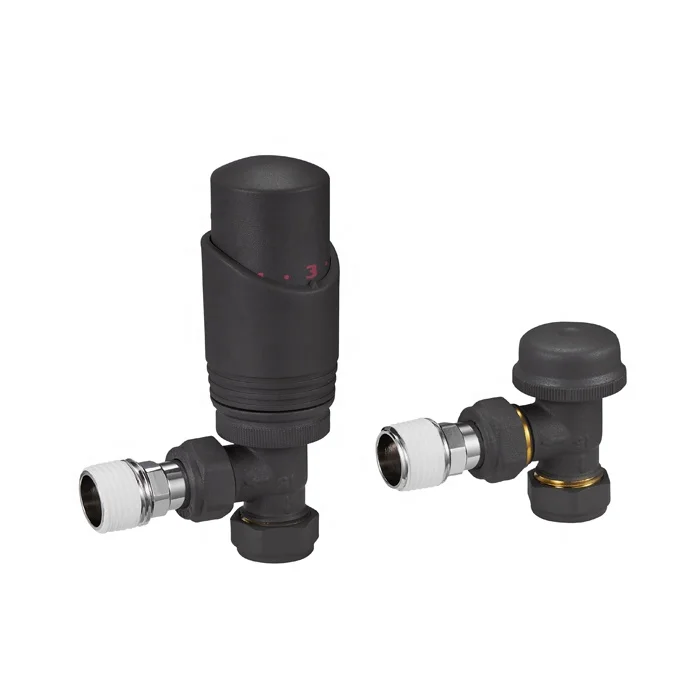

♦ 4 colors for more match options-Chrome/White/Anthracite

♦ Forging process, 100% leakage test to eliminate the possibility of leakage

♦ High precision machining, top quality polish and chrome/paint finish

♦ Forging process, 100% no leakage

♦ Sensitive Thermostat Head according to EN215 make the temperature change simple, easy

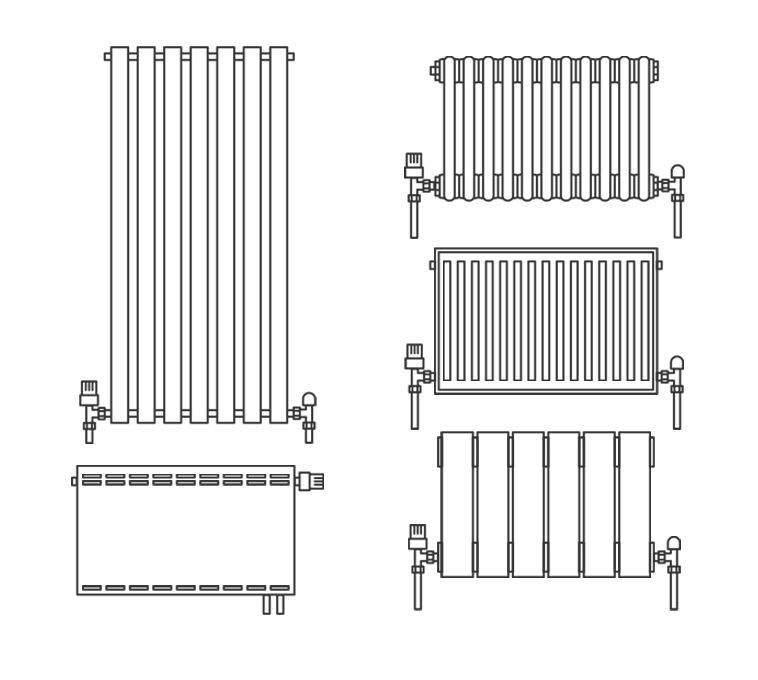

♦ It is recommended to fit one connection side of TRV to the inlet pipe– the water flow pipe, and another connection side to be mounted with the towel rail or radiator. Can we fit it to the return pipe? If you do this way, you would later find that a noisy, vibrating sound comes out when the water comes through

♦ Normally, a manual radiator(or return) valve will comes together with a thermostatic radiator valve. With this manual radiator valve, you can mount it to the return pipe to open or shut off the water

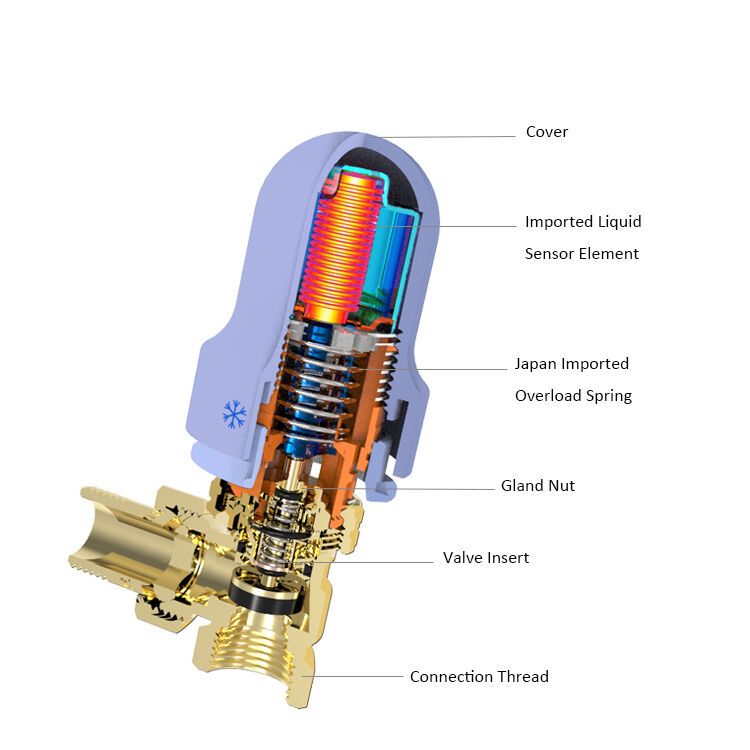

The sensor element of BESTJADES thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.

When the room temperature exceeds the set temperature, the liquid sensor element in the thermostatic head expands and increases it’s volume. It pushes the valve’s stem to turn down the valve, to reduce the hot water flow of the radiator and make the room temperature reach the set temperature. When the room temperature is lower than the set temperature, the liquid sensor element shrinks and the volume decreases. The returned spring in the valve core pushes back the valve stem to open the valve and increase the hot water flow of the radiator until the room temperature reaches the set value.

With these energy efficient trv valves, the temperature in each room of the home is easily controlled, reducing energy usage and saving money by avoiding overheating commonly caused by manual valves. A compression connection and PTFE seal are recommended for installation.

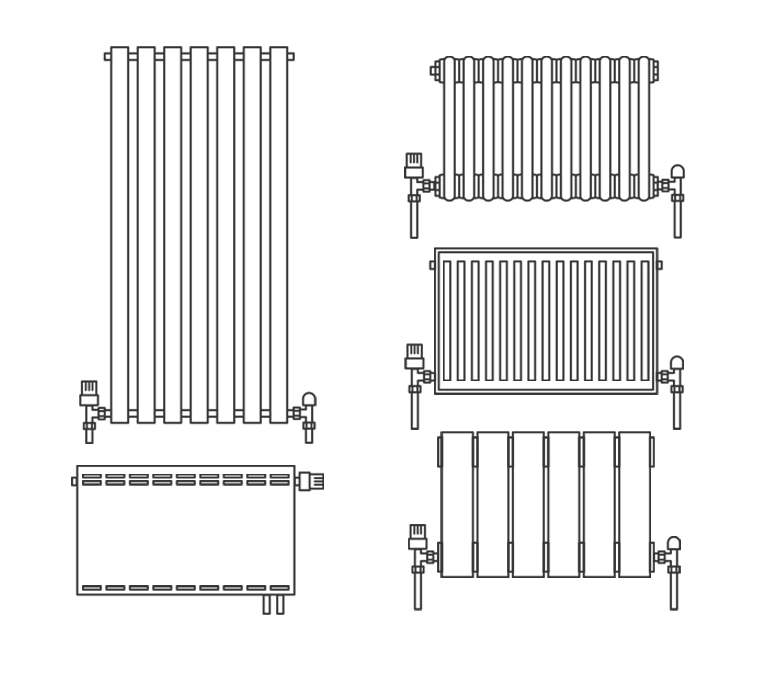

It is recommended to fit one connection side of TRV to the inlet pipe– the water flow pipe, and another connection side to be mounted with the towel rail or radiator. Can we fit it to the return pipe? If you do this way, you would later find that a noisy, vibrating sound comes out when the water comes through.

Normally, a manual radiator(or return) valve will comes together with a thermostatic radiator valve. With this manual radiator valve, you can mount it to the return pipe to open or shut off the water.

Q1. Are you a factory or trading company?

A: We are a factory and trade company together. We have our own factory with different workshops and production equipment lines. Welcome to visit our factory.

Q2. Can I have a sample order?

A: Yes, sample order can be offered to test and check quality.

Q3. Do you have any MOQ limit for one order?

A: For promotion items: No MOQ, 1pc available & For non-promotion items: 1000~3000pcs MOQ according to different models.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It takes approx 30 days to arrive. Airline shipping can be also optional.

Q5. What’s your production lead time?

A: Sample order: 7~10 days；Bulk order: 30~45 days.

Q6. Can you do OEM?

A: Yes, welcome to provide drawings or samples for customization.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
