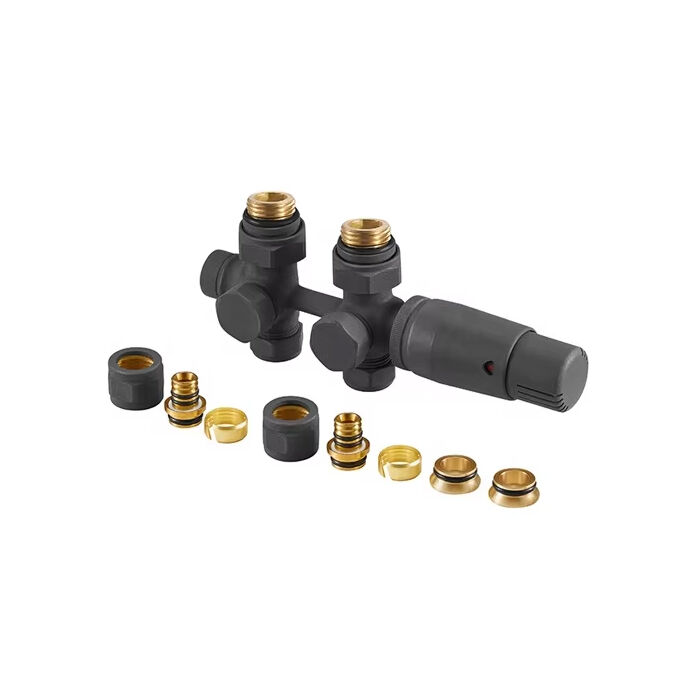

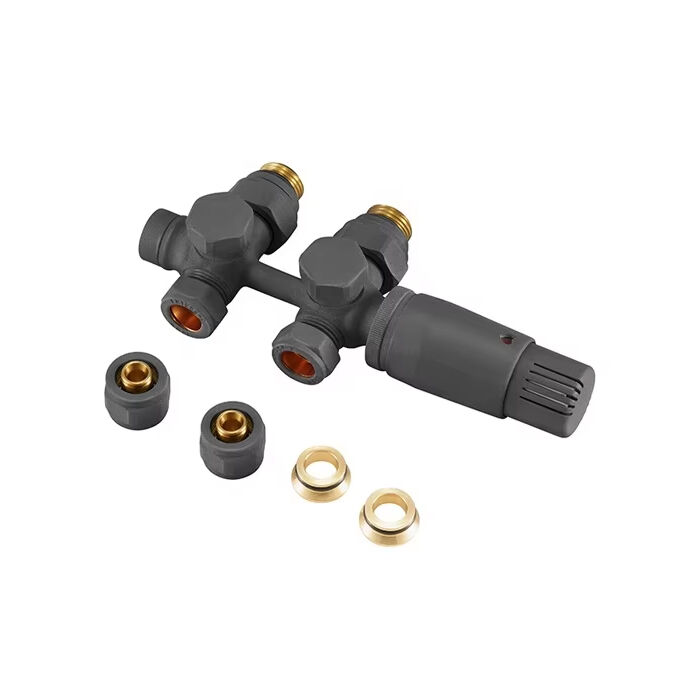

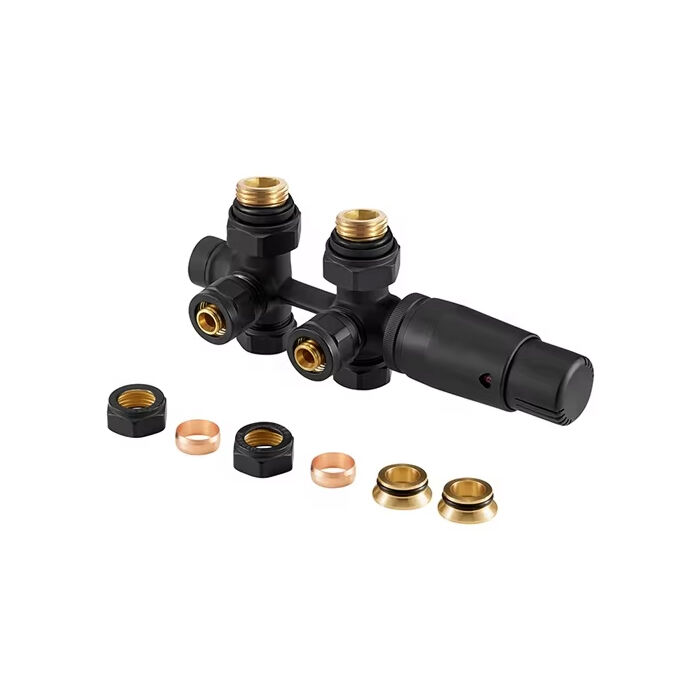

Economic Design of Twin Multi Block Integrated TRV H Type Thermostatic Radiator Valves BJ13005B

Introducing the Economic Design of the Twin Multi Block Integrated TRV H Type Thermostatic Radiator Valve, model BJ13005B, by BESTJADES. This innovative valve is designed to bring better comfort, energy savings, and ease of use to your heating system. Whether you are upgrading your current radiator valves or installing a new heating system, the BJ13005B model offers a smart solution for efficient temperature control.

The BESTJADES BJ13005B valve features a twin multi-block integrated design that combines two valves into one compact unit. This clever design allows for easy installation and better control over the flow of hot water through your radiator. With this valve, you can regulate the temperature of each radiator individually, helping you to keep every room in your home or office comfortable and energy-efficient.

One of the main highlights of this thermostatic radiator valve is its H type configuration, which fits for radiators with a bottom middle connection in 50mm center distance. The integrated design means flexible connections for straight pipes come from the floor or angled pipes come from the wall, making it cost-effective and durable. The high-quality materials used in the BJ13005B ensure long-lasting performance and resistance to wear, so you can trust this valve to work properly for many years.

The thermostatic function in the BJ13005B valve helps maintain the desired temperature in a room by adjusting the flow of hot water automatically. This means it can react to the room temperature changes and reduce energy waste by avoiding overheating. The result is a more comfortable environment and lower heating bills. It is perfect for both residential and commercial use, especially in places where temperature control is important.

Thermostat Working Principles

The sensor element of BESTJADES thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.

Advantages of BEIJINSI Thermostat Head

1. Adopts Germany imported sensor element, which can detect the temperature change sensitive, lifetime is longer

2. The Japan imported stainless steel spring SUS631-17-7H makes the resilience better, and lifetime can reach to 100000 times

3. Professional engineered designed and produced, to give out excellent and reliable performance

4. Test according to EN215 standard

♦ 2 kinds of connection offered: 15MM&16MM

♦ 15mm connection for copper pipe and 16mm connection for PEX pipe

♦ The end user can exchange it flexibly according to their need

♦ 1 model, dual use for straight 180° and angled 90° installation

♦ 1 inlet valve and anther outlet valve structure offers simple and easy installation option

♦ Designed with integrated optimized structure, 20% price off compared with luxury model, more competitive in the market

♦ With MINI thermostat to optimize the aesthetics and heating efficiency, and down the cost

♦ Sensitive Thermostat Head according to EN215 make the temperature change simple, easy

Q1. Can I have a sample order?

A: Yes, sample order can be offered to test and check quality.

Q2. Do you have any MOQ limit for one order?

A: For promotion items: No MOQ, 1pc available.

For non-promotion items: 1000~3000pcs MOQ according to different models.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It takes approx 30 days to

arrive. Airline shipping can be also optional.

Q4. What's your production lead time?

A: Sample order: 7~10 days

Bulk order: 30~45 days

Q5. Can you do OEM?

A: Yes, welcome to provide drawings or samples for customization.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
