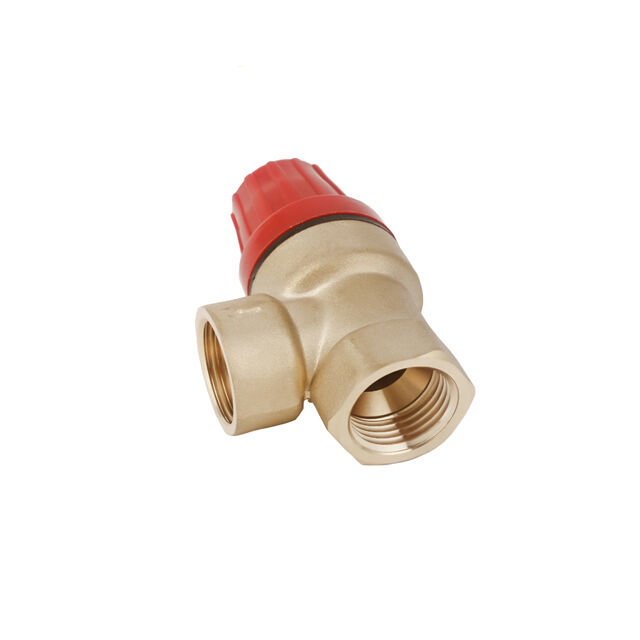

Boiler Solar Water Heater Safety Relief Valve for Heating System BJ41001

The BESTJADES Boiler Solar Water Heater Safety Relief Valve (model BJ41001) is a reliable and essential safety device designed to protect your heating system. This valve helps prevent excessive pressure build-up in solar water heaters and boiler systems, ensuring the system operates safely and efficiently.

Safety is the top priority in any heating system. When water inside a boiler or solar water heater heats up, it creates pressure. If this pressure becomes too high, it can cause damage to the system or even result in dangerous situations like leaks or bursts. The BESTJADES Safety Relief Valve is designed to automatically release excess pressure, keeping your system safe and secure.

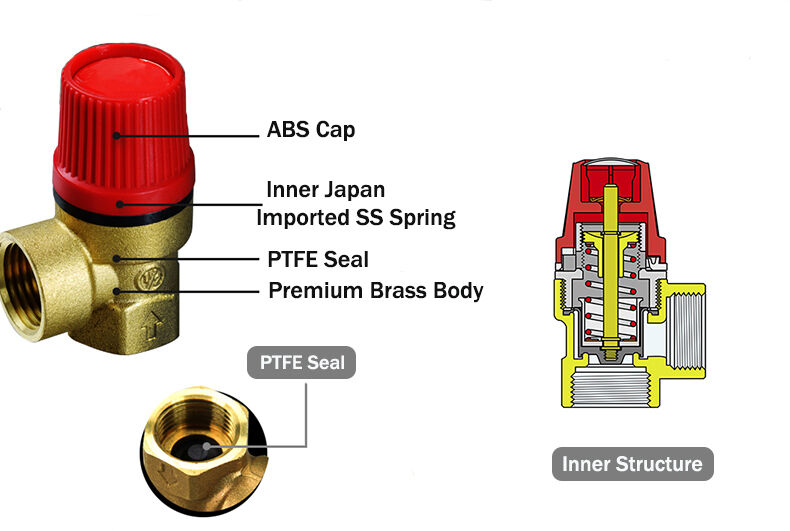

Made with high-quality materials, the BJ41001 valve is durable and built to last. It features a strong brass body that resists corrosion and wear, even when exposed to hot water and steam. This makes it ideal for use in both residential and commercial solar water heater systems and boilers. The valve ensures a tight seal under normal operating conditions and opens smoothly when pressure exceeds the safe limit.

Installation of the BESTJADES Safety Relief Valve is straightforward. It fits easily into most standard heating systems and comes with clear instructions to help you set it up quickly. Once installed, it works quietly and reliably without the need for frequent maintenance. This saves you time and reduces the chances of costly repairs caused by pressure-related problems.

The BESTJADES BJ41001 Safety Relief Valve is a must-have component for anyone using a solar water heater or boiler heating system. It combines safety, durability, easy installation, and efficiency in one reliable product. Choosing the BESTJADES valve means you get a trusted solution that helps keep your hot water system safe, working smoothly, and lasting longer.

How Does The Safety Relief Valve Work?

♦ A safety relief valve controls the water pressure that comes into the home. It provides safety protection in the system. When the system’s pressure exceeds the set value, the safety valve is opened to relief the pressure, so that the system pressure can be controlled under safety range. The high water pressure may cause many plumbing problems like leakages, pipe bursting ect, so keeping the water pressure under a safe lever is very important and necessary.

♦ Once the set pressure is reached, the pressure overcomes the spring pressure and pushes the diaphragm back opening the orifice and releasing the excess pressure. Depending on the media, it is either discharged to the atmosphere or back to a tank or pumping circuit hydraulics.

Installation Instructions

♦ The safety valve can be installed horizontally or vertically, but it cannot be installed upside down. That means the ABS cap cannot be at the bottom.

♦ The pressure relief port should be connected with a drain pipe for drainage. The floor drain must be installed vertically below the discharge pipe of the safety valve, and the water outlet must be downward Use a hard drain pipe (to prevent the water pipe from moving by connecting with the hose under the high-pressure relief), and the size should be consistent with the diameter of the water outlet.

♦ Rotate the red cap to manually relieve the pressure

♦ The safety valve combines the expansion tank and the automatic water supply valve to form a complete set of small constant pressure water replenishment expansion system, which has the function of automatic water replenishment when the system pressure is low, absorbing the expansion when the pressure is high, and automatically relieving the pressure when overpressure.

♦ Manual & automatic operation can be available

♦ Jap imported SS304 stainless steel spring in good resilience, 100000 times lifetime

♦ High precision machining make high precision sealing and pressure relief

♦ Pressure relief value can be set from 2 bar to 6 bar according to different applications

♦ Professional designed pressure testing equipment to make valve's quality stable and reliable

Q1. Are you a factory or trading company?

A: We are a factory and trade company together. We have our own factory with different workshops and production equipment lines. Welcome to visit our factory.

Q2. Can I have a sample order?

A: Yes, sample order can be offered to test and check quality.

Q3. Do you have any MOQ limit for one order?

A: For promotion items: No MOQ, 1pc available & For non-promotion items: 1000~3000pcs MOQ according to different models.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It takes approx 30 days to arrive. Airline shipping can be also optional.

Q5. What’s your production lead time?

A: Sample order: 7~10 days;Bulk order: 30~45 days.

Q6. Can you do OEM?

A: Yes, welcome to provide drawings or samples for customization.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
