Pressure Controller Auto-reset Differential Switch for Air Compress or Water Pump BJ52003, China Pressure Controller Auto-reset Differential Switch for Air Compress or Water Pump BJ52003 Manufacturers, Suppliers, Factory - Zhejiang Aibeite Intelligent Technology Co., Ltd

Basic Information

Description	Pressure Controller Auto-reset Differential Switch
Model No.	BJ52003
Material	ABS & Metal
Size	7/16''-20UNF
Working Medium	Non-Corrosive Gas, Water, Oil
Working Voltage	AC125/250V
Pressure Range	-0.7~6MPa
Difference Range	0.6~3 bar

Description

Introducing the BESTJADES Pressure Controller Auto-reset Differential Switch for Air Compress or Water Pump (BJ52003). Specifically engineered for air compressors and water pumps, this auto-reset differential pressure switch is a critical pressure control component, crafted from high-quality materials to ensure exceptional structural stability, pressure resistance and corrosion resistance, perfectly adapting to the working conditions of air compression and water supply systems.

Featuring a precise auto-reset differential design, it enables automatic monitoring and control of system pressure, realizing automatic start and stop of air compressors or water pumps according to preset pressure values. The differential pressure control function ensures stable system pressure, avoiding frequent start-stop of equipment and extending service life. Its high-sensitivity pressure sensing mechanism responds quickly to pressure changes.

Installation is convenient and efficient, with standardized interfaces that ensure wide compatibility with most standard air compressors and water pumps. The switch operates stably and reliably, with adjustable pressure settings to meet different working requirements of air compression and water supply systems. Whether for new equipment matching or old switch replacement, this auto-reset differential pressure controller is an optimal choice, providing reliable pressure control performance and long-term service life.

Pressure Controller Auto-reset Differential Switch for Air Compress or Water Pump

A pressure controller auto-reset differential switch for air compress or water pump is a specialized control component for air compression and water supply systems. Made of high-quality materials, it features an auto-reset differential design for automatic pressure monitoring and equipment start-stop control, with excellent pressure sensitivity, stability, corrosion resistance and durable properties. Suitable for the working conditions of air compressors and water pumps, it is widely applied in residential, commercial and industrial air compression and water supply system installations.

Features

♦ It can be used in the freezing medium like Freon, air and liquid

♦ With SPDT switch contact mechanism.

♦ Micro switch ensure the reliable switch funtion

♦ It plays an important safety role in regulating, monitoring and alarm systems in industrial applications.

♦ The quick snap mechanism ensures a Class A contact function, which complies with EMC standards. A negligible bouncing time (10-15 µs) extends the life of the switch so it can withstand more than 100,000 operations, keeping your equipment working longer

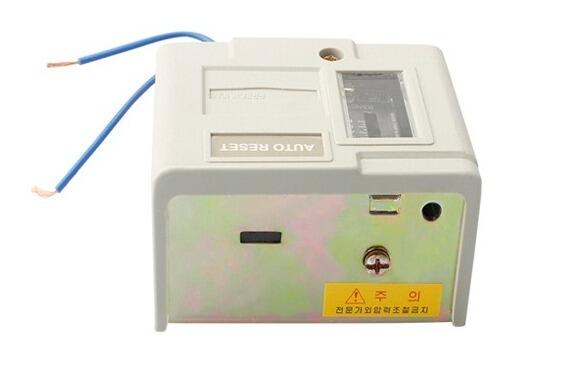

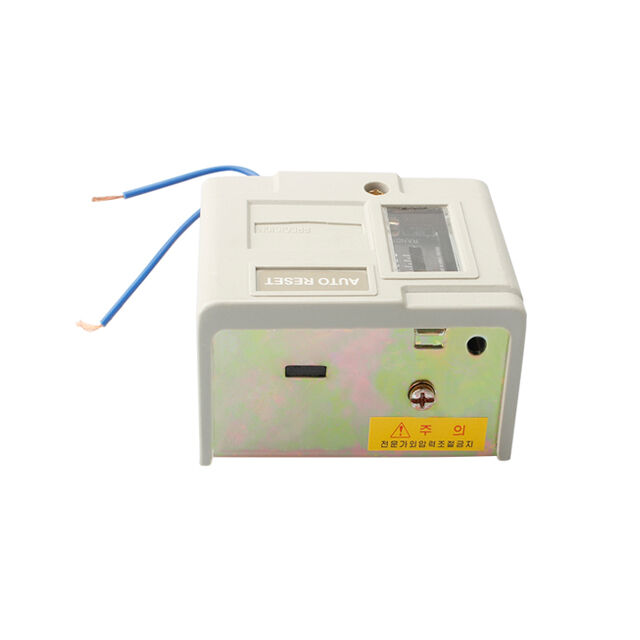

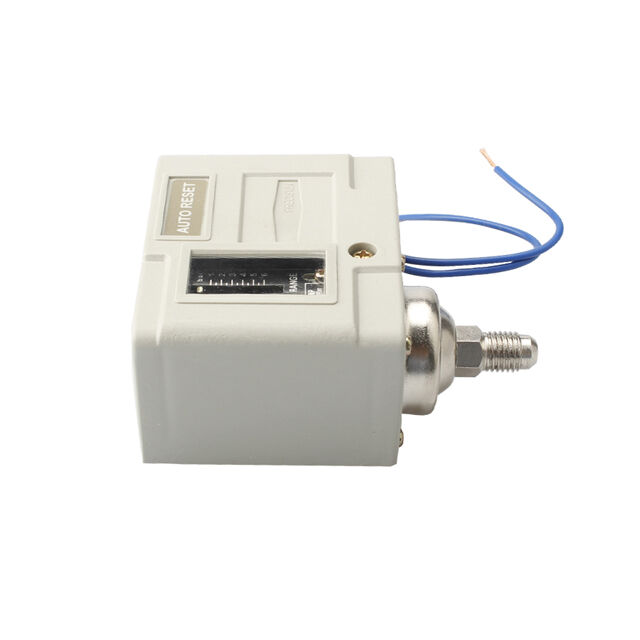

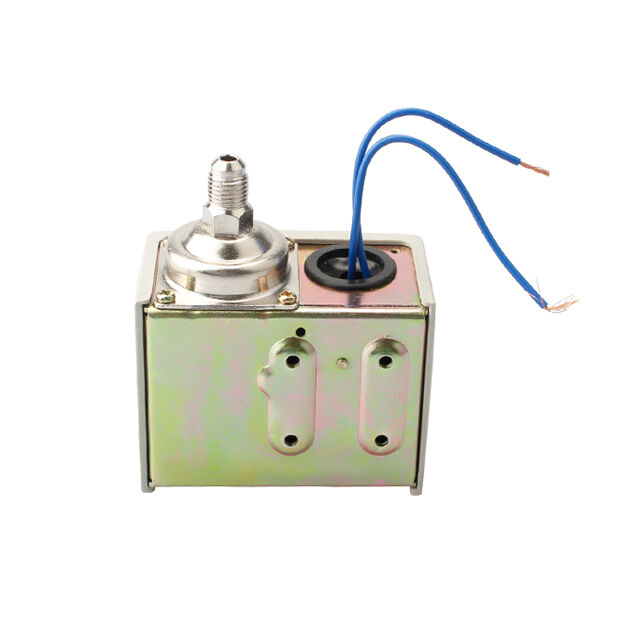

Detail Images

FAQ

Q1. Are you a factory or trading company?

A: We are a factory and trade company together. We have our own factory with different workshops and production equipment lines. Welcome to visit our factory.

Q2. Can I have a sample order?

A: Yes, sample order can be offered to test and check quality.

Q3. Do you have any MOQ limit for one order?

A: For promotion items: No MOQ, 1pc available & For non-promotion items: 1000~3000pcs MOQ according to different models.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It takes approx 30 days to arrive. Airline shipping can be also optional.

Q5. What’s your production lead time?

A: Sample order: 7~10 days；Bulk order: 30~45 days.

Q6. Can you do OEM?

A: Yes, welcome to provide drawings or samples for customization.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
